Golf Simulator Room Ultimate Build Guide Expert Dimensions And Setup 2025

Worried your dream golf simulator room won’t fit? It’s a common fear.

You want a personal golf studio, but the risk of buying expensive, incompatible equipment for your space is high. A golf simulator room is a dedicated environment designed to house and optimize tracking technology for a virtual golf experience.

The minimum recommended dimensions for a safe golf simulator room are 9 feet high, 10 feet wide, and 12 feet long. This guide will walk you through the exact, expert-verified steps to measure, plan, and build a setup that fits your space and budget perfectly, ensuring a safe and immersive experience.

Stop Guessing: The Ultimate Guide to Perfect Golf Simulator Room Dimensions

The biggest hurdle in planning an indoor golf setup is confirming room feasibility. The financial and safety risks are real; buying a high-end launch monitor only to find your ceiling is too low for a driver is a costly mistake. That’s why understanding the minimum and optimal room dimensions is the critical first step. All dimensions discussed here are verified against industry safety standards and leading launch monitor manufacturer specifications, giving you an authoritative blueprint.

What are the minimum dimensions for a golf simulator room? The minimum recommended dimensions for a basic, safe golf simulator room allowing for irons and wedges are 9 feet (H), 10 feet (W), and 12 feet (L). For full, safe driver usage by taller players, 10 feet (H), 13 feet (W), and 15 feet (L) is strongly recommended. These extra feet provide crucial safety margins and allow for a more centered, comfortable hitting zone, which is essential for certain types of launch monitors.

The 9 Expert Steps to Building Your Custom Golf Simulator Room 2025

Building your dream golf simulator room, whether it’s a basement golf simulator or a garage golf simulator, is a complex project. Following a sequential build process is the key to mitigating risk and ensuring all components work together seamlessly. These nine steps, based on documented successful installations in various residential spaces, prioritize safety and component compatibility before aesthetics, guiding you from an empty room to a fully functional personal golf studio.

The core steps to building a golf simulator room include: 1. Confirming dimensions and clearances. 2. Selecting the launch monitor technology. 3. Calculating projector alignment. 4. Constructing the enclosure frame. 5. Installing the hitting mat. 6. Implementing safety padding. 7. Installing electrical circuits. 8. Optimizing acoustics. 9. Designing lighting and aesthetics.

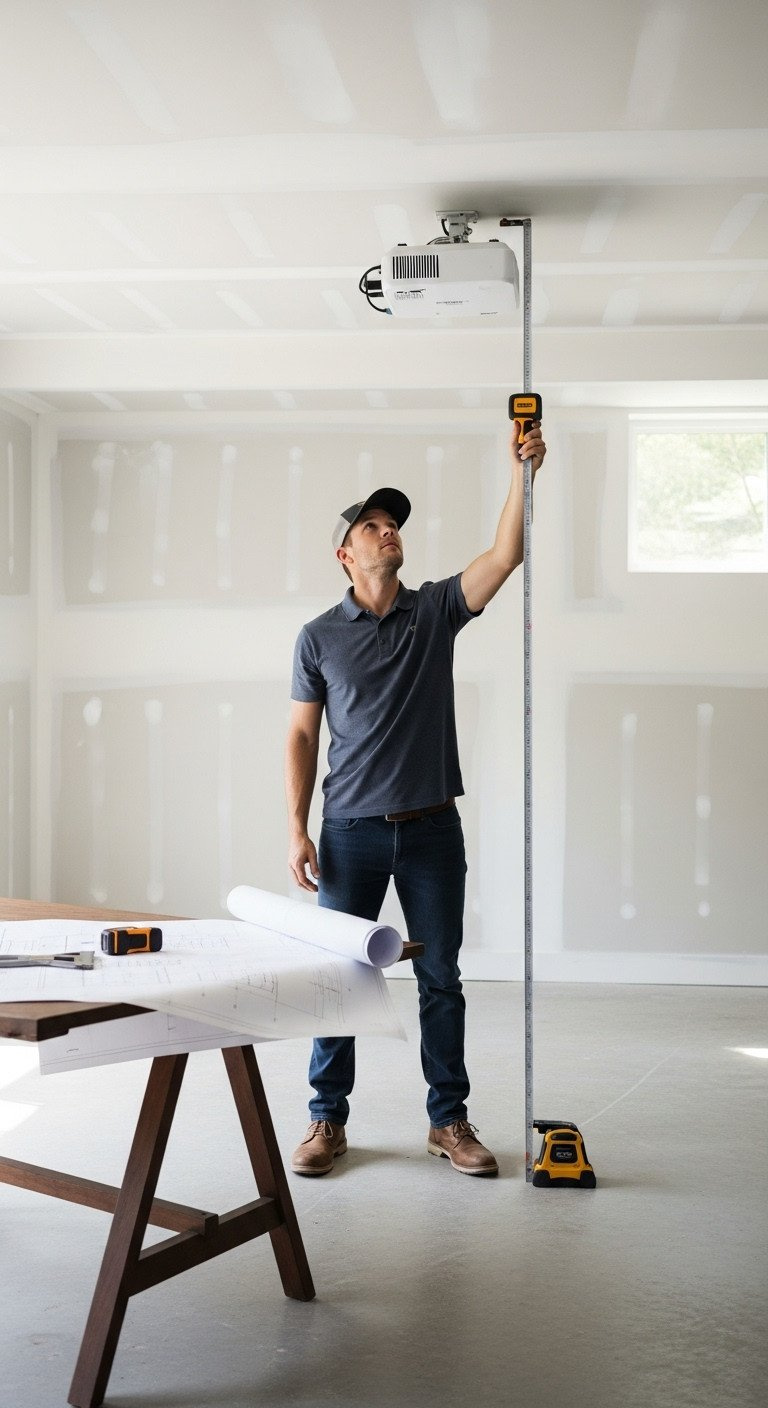

1. Mastering the Critical Room Dimensions (H, W, L)

Pin this crucial measurement guide to your ‘Golf Sim Planning’ board!

This first step is non-negotiable. Accurately measuring your space determines everything that follows, from the launch monitor you can buy to the size of your impact screen. The key is understanding that ideal dimensions provide more than just room to swing; they ensure safe swing space and accommodate both left and right-handed players without constant adjustments. Your ceiling height is the most critical constraint, as it directly impacts driver safety based on the swing plane apex of the tallest player.

Materials Needed:

• Laser Distance Measurer (Highly recommended for accuracy)
• Standard Measuring Tape (For backup/detail measurements)
• Safety Orange Marker or Tape (For marking clearance zones)
• Notebook and Spreadsheet Template (For logging multiple measurements)

Step-by-Step Directions:

1. Measure the Height: Identify the highest point on your ceiling. If walls or ceiling slope, measure the lowest usable point where the golfer will stand, ensuring at least 10 feet for driver safety.
2. Measure the Width: Measure the wall-to-wall width. Ideal width is 13-15 feet to accommodate centered hitting and safe left/right-handed play without moving the sensor.
3. Measure the Length (Depth): Measure the floor length from back wall to front wall. Ensure a minimum of 15 feet. This is calculated as: Golfer to Mat + Mat to Screen (8-10 ft) + Screen to Wall Buffer (1.5 ft).
4. Calculate Swing Clearance: For the tallest golfer, estimate their height plus arm length, and add 12-18 inches for club apex buffer. If your ceiling is lower than this total, you must consider a recessed mat solution or shorter driver shafts.

Pro-Tip: Uneven floors (common in basements/garages) must be accounted for. Measure height at the center of the hitting zone, not just at the walls.

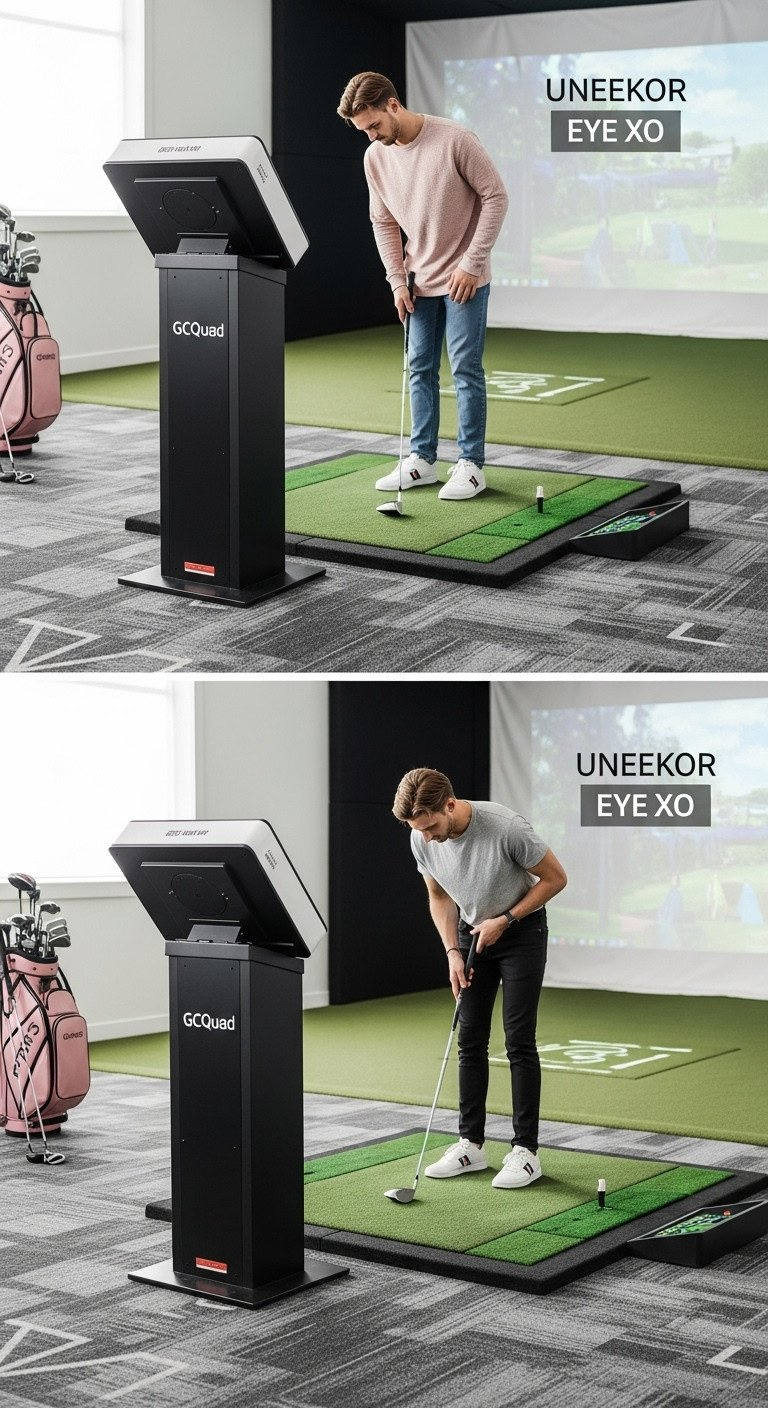

2. Selecting the Launch Monitor Based on Your Space

Save this guide before you buy your sensor!

Your room dimensions directly dictate the type of golf launch monitor technology you can use. The relationship between the launch monitor placement and the available room width or depth is critical for accurate club data capture. Understanding the difference between photometric and radar systems is essential to making a smart investment that fits your space.

Key Considerations for Selection:

• Photometric/Camera-Based (e.g., Uneekor, Foresight): Require specific vertical alignment (overhead) or placement next to the hitting mat (side). Overhead systems maximize floor space and left/right flexibility; side systems require wider rooms (13 ft+) to allow centered hitting.
• Radar/Doppler (e.g., Trackman, Mevo+): Require significant depth (up to 16-18 feet total room length) as they need 6-8 feet behind the ball for accurate club path and ball tracking. They require less width.
• Screen-Based Systems (e.g., OptiShot): Budget friendly, but often require the least space, though accuracy is compromised compared to dedicated external sensors.

Placement Strategy:

1. Identify Constraint: Determine if your primary limitation is room Width (go overhead/centered) or Length (avoid radar systems).
2. Mark Hitting Zone: If using a side-mounted unit, mark the ball position precisely in the center of your screen. Ensure the unit is safely out of the impact zone, typically 12-20 inches from the mat edge.
3. Verify Ceiling Stability: For overhead units, confirm your ceiling structure (joists) can securely handle the weight and vibration, ensuring it is perfectly level with the hitting surface for accurate data capture.
4. Cable Management Plan: Decide how USB/Ethernet/Power cables will be routed (under the mat or along the ceiling) to prevent tripping hazards.

Pro-Tip: If your ceiling is lower than 9’6″, overhead systems like the Uneekor QED/EYEXO may be too difficult to mount safely and optimally due to minimum vertical distance requirements. Check the manufacturer’s exact specifications for mounting height before purchasing.

3. Calculating Projector Throw Ratio and Placement

Save this technical calculation—essential for shadow-free play!

Perfect projector placement is a science. The goal is to fill your impact screen perfectly without the golfer casting a shadow during their swing. This is achieved by understanding the projector’s throw ratio, a specification that defines the relationship between the projector’s distance from the screen and the width of the image it produces. Incorrect calculations can lead to distorted images or frustrating shadows, ruining the immersion.

Materials Needed:

• Projector Model Number (Must know the specific throw ratio)
• Online Throw Ratio Calculator (Essential tool)
• Screen Dimensions (Exact width and height of usable screen area)
• VESA Mount (Ceiling or wall mount compatible with your projector)

Calculation & Placement Steps:

1. Input Data: Use an online calculator (e.g., from a projector manufacturer site) and input your screen width and height, target aspect ratio (e.g., 4:3), and your chosen projector model’s throw ratio.
2. Determine Throw Distance: The calculator will output the required distance between the projector lens and the impact screen. This distance must fall within your available room depth, keeping the projector safely out of the swing path.
3. Select Throw Type: If your distance is 6-10 feet, use a Short Throw (ST) projector. If it’s 4-6 feet or less, an Ultra-Short Throw (UST) projector is necessary to eliminate shadows.
4. Account for Offset: The projector’s vertical offset must be factored into mounting height to ensure the image hits the center of the screen without tilting the projector, which can cause image distortion (keystoning). Mount the projector as high and far forward as possible to avoid casting shadows.

Pro-Tip: Always choose a projector with at least 3,000 lumens. Even in dark sim rooms, high brightness is necessary to overcome the light absorption of a dense impact screen material, providing better contrast and a vibrant image.

4. Constructing the DIY Impact Screen Enclosure Frame

Pin this cost-effective framing solution!

The enclosure frame provides the structural integrity for your entire hitting bay. Its job is to hold the impact screen under perfect tension while also supporting side and ceiling netting to contain errant shots. A popular, cost-effective solution for a DIY enclosure kit involves using EMT (Electrical Metallic Tubing) conduit, which is strong, lightweight, and easy to assemble with specialized corner fittings.

Materials Needed:

• 1.5 inch EMT Metal Conduit Pipes (Cut to specific H, W, L)
• Metal Corner Fittings/Connectors (3-way and 4-way)
• Impact Screen Material (High-quality triple layer, cut to size)
• Heavy-Duty Ball Bungee Cords (Used for tensioning the screen)
• Cable Ties or Velcro Straps (For securing ceiling/side netting)

Step-by-Step Directions:

1. Cut and Prepare: Measure and cut the EMT conduit based on the screen size plus 6 inches of buffer for the enclosure frame. Ensure all pieces are deburred to protect the screen material.
2. Assemble Frame: Connect the pipes using the corner fittings, starting with the base rectangle, then adding the vertical supports and the top rectangle. Ensure the frame is level and plumb using a construction level.
3. Mount Ceiling Supports: Secure the top frame to the ceiling joists using heavy-duty hardware (J-hooks or pipe straps) if necessary, providing rigid stability.
4. Attach Screen: Thread the ball bungee cords through the screen’s grommets and attach them to the frame, starting with the top center and working outwards. Tension the screen uniformly to eliminate wrinkles and slack, ensuring a perfectly flat surface for projection.
5. Install Netting: Hang secondary netting or blackout fabric on the sides and top of the enclosure frame to prevent high or wide mishits from escaping the hitting bay.

Pro-Tip: Always size your enclosure to be 1 foot taller and 1 foot wider than your actual impact screen to provide a crucial safety buffer, ensuring the frame itself absorbs errant shots rather than the wall.

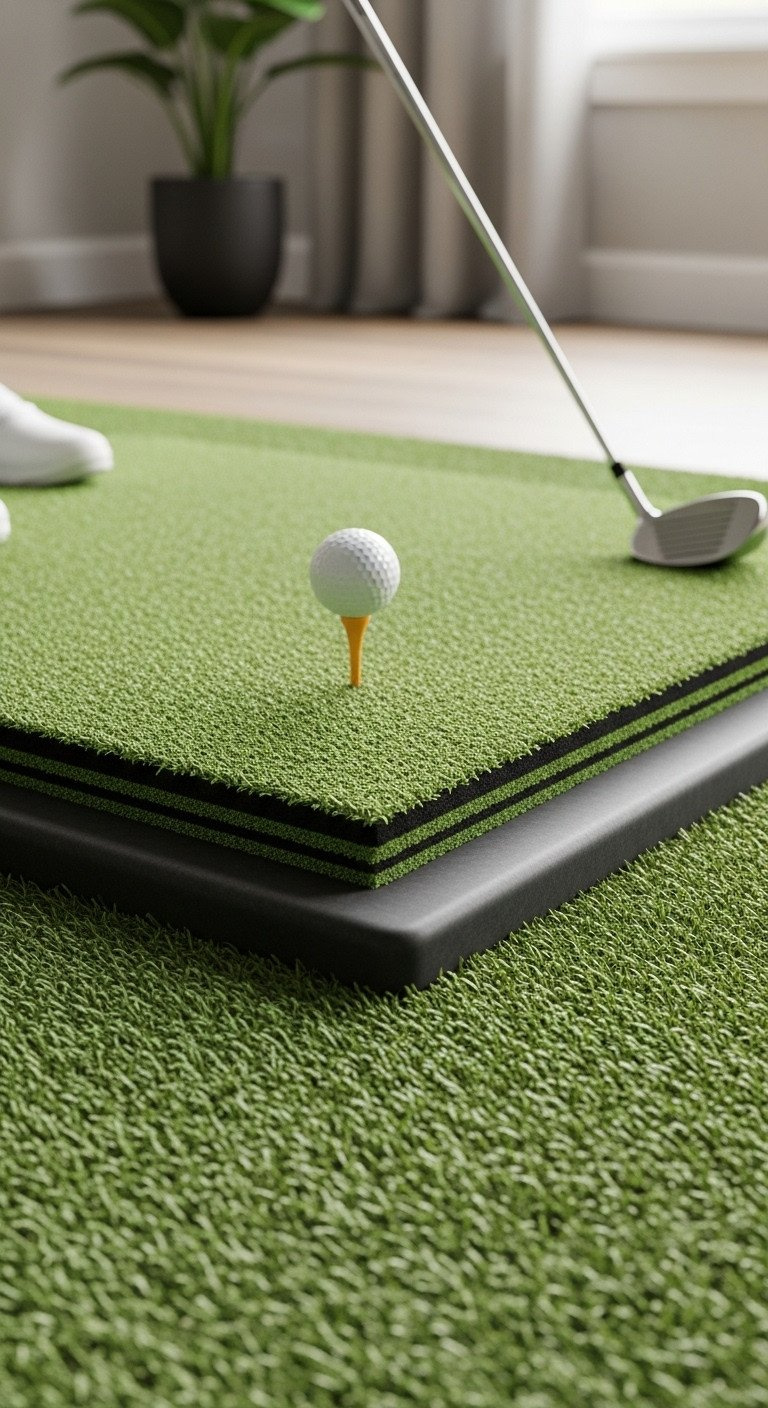

5. Sourcing and Installing the Commercial-Grade Hitting Mat

Upgrade your mat now to save your joints later!

The hitting mat is the single most important component for your long-term health and the accuracy of your system. A cheap, thin mat provides poor feedback and can lead to wrist and joint pain (“simulator elbow”) from repetitive impact shock. A commercial-grade hitting mat with proper thickness and density not only protects your body but also ensures a perfectly level surface, which is critical for accurate sensor readings.

Materials Needed:

• Commercial-Grade Hitting Mat (1.5-2 inches thick, gel or foam-backed)
• Leveling Shims or Pads (For correcting uneven floors)
• Puzzle-Style Foam Tiles or Commercial Turf (For surrounding floor area)
• Heavy-Duty Rubber Cement or Adhesive (Optional, for permanent installation)

Installation Steps:

1. Level the Surface: If installing on a concrete basement floor, use a laser level to identify low spots. Place leveling shims or a thin layer of self-leveling compound beneath where the mat will sit to ensure it is perfectly flat.
2. Install Surrounding Floor: Lay down foam tiles or synthetic turf across the rest of the hitting zone floor, ensuring the final height of the surrounding floor is flush with the top of the hitting mat. This prevents a dangerous step.
3. Position Mat: Place the hitting mat in the desired location, typically centered on the screen. Verify the mat is oriented correctly for your launch monitor (especially if using a side-mounted unit requiring a specific ball placement).
4. Secure (Optional): If making a permanent setup, apply rubber cement or heavy-duty double-sided tape around the perimeter of the mat to secure it to the subfloor, preventing shifting during powerful swings.

Pro-Tip: Never skimp on the mat quality. A cheap mat leads to “simulator elbow” from repetitive impact shock. Look for mats designed with multiple layers of density to simulate the shock absorption of real turf.

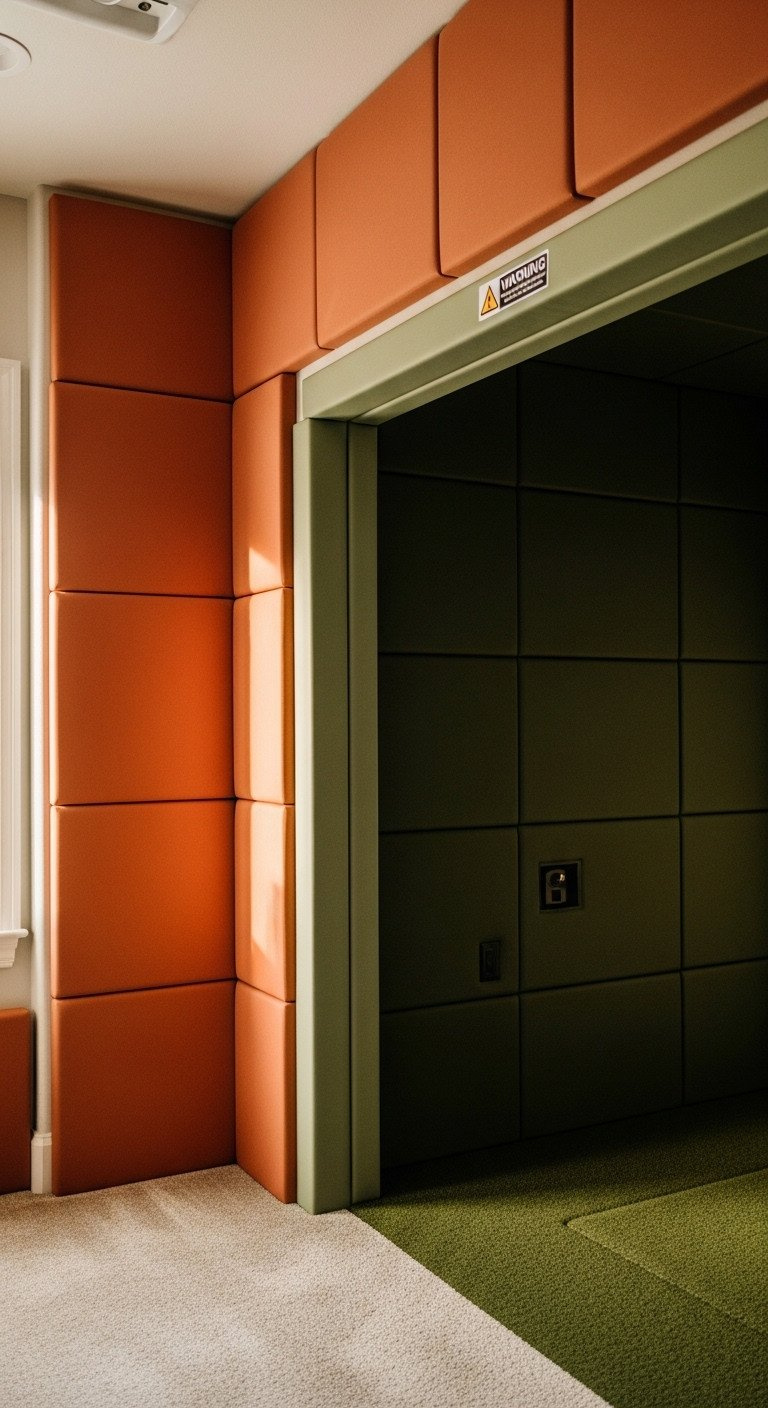

6. Ensuring Safety: Ball Ricochet Mitigation and Padding

NEVER skip these safety steps—save your walls and your head!

Safety is paramount. A golf ball traveling at over 150 mph can cause significant property damage and serious injury. Proper wall protection, ceiling protection, and safety features are not optional—they are essential for mitigating the risk of ball ricochet. This involves covering any hard surfaces near the hitting bay with materials designed to absorb high-velocity impacts.

Materials Needed:

• High-Density Foam or Vinyl Wall Padding (3/4 inch minimum thickness)
• Ceiling Baffles or Heavy Netting (To catch high lofted shots)
• Construction Adhesive or Heavy-Duty Velcro Strips
• Side Barrier Netting (To be hung on the side of the enclosure frame)

Installation Steps:

1. Pad Perimeter Walls: Install foam or vinyl padding on all walls that are within 5 feet of the screen periphery, extending from floor to ceiling. This absorbs errant shots and eliminates the hard surface contact that causes dangerous ricochets.
2. Secure Side Netting: Install dark, heavy-duty netting along the enclosure side walls (if not using a full fabric wrap). Ensure the netting extends forward past the golfer’s position to account for shanks.
3. Install Ceiling Baffles: Secure ceiling baffles or soft foam tiles directly above the enclosure opening and slightly in front of the screen. This is crucial for catching high wedge shots or pop-ups.
4. Screen Buffer Check: Verify the Impact Screen is 12-18 inches away from the back wall to allow the screen to flex and absorb kinetic energy, significantly reducing bounce-back.

Lesson Learned: Do not use thin acoustic foam (meant for sound absorption only) for padding; you need high-density material specifically rated for impact protection to prevent property damage and injury.

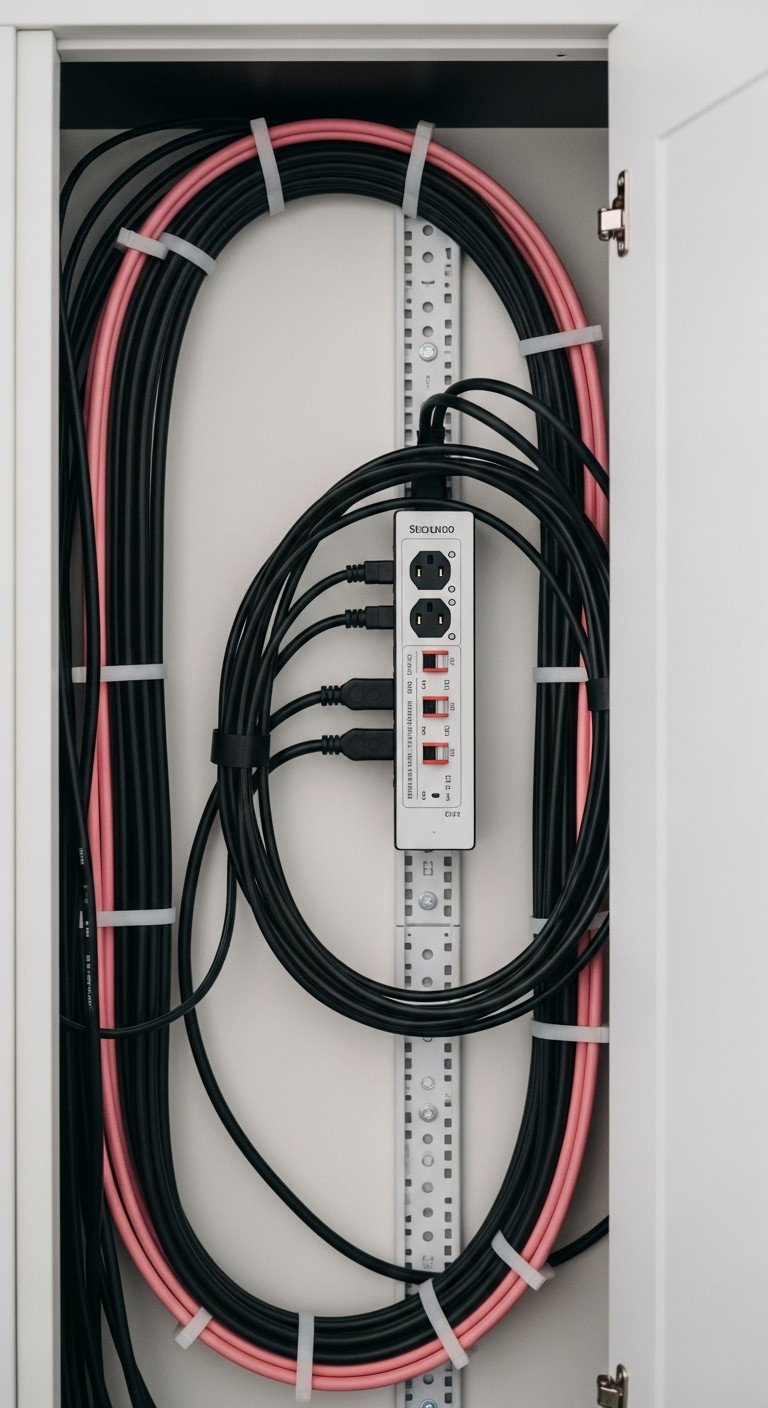

7. The Essential Electrical & Dedicated Circuit Wiring

Protect your expensive tech! Pin this electrical checklist!

Your golf simulator components—the high-performance PC, bright projector, and sensitive launch monitor—are a significant investment. Protecting them from power fluctuations is crucial. A dedicated electrical circuit ensures your system receives stable power, preventing dips that can cause sensor misreads or damage to delicate electronics. Proper grounding and surge protection are non-negotiable trust signals for a professional-grade setup.

Materials Needed:

• Dedicated 20-Amp Circuit Installation (Recommended, professional electrician only)
• High-Quality Surge Protector (MUST have power conditioning)
• HDMI and USB Extender/Active Cables (For long runs to projector)
• Cable Management Raceways or Sleeves
• UPS (Uninterruptible Power Supply) (Recommended for PC/Monitor)

Implementation Steps:

1. Install Dedicated Circuit: Hire a licensed electrician to install a dedicated 20-amp circuit for the simulator equipment (PC, projector, sensor). This prevents power dips when other high-draw appliances turn on.
2. Plan Cable Runs: Map out all necessary cable runs (power, HDMI, USB). Run all data cables through protected raceways along the ceiling or under flooring/mats to eliminate tripping hazards.
3. Utilize Surge Protection: Connect the PC, Projector, and Launch Monitor power bricks to a high-quality surge protector or, ideally, an Uninterruptible Power Supply (UPS) to guard against voltage spikes and power failures.
4. Minimize Latency: Use high-speed, certified HDMI 2.0 or 2.1 cables (or active optical cables for runs over 30 feet) to connect the PC to the projector, ensuring minimal signal latency for a smooth, immersive experience.

Pro-Tip: Power fluctuations, even minor ones, can sometimes cause photometric launch monitors to misread. A dedicated circuit and a power conditioning surge protector are essential protective investments for your most expensive hardware.

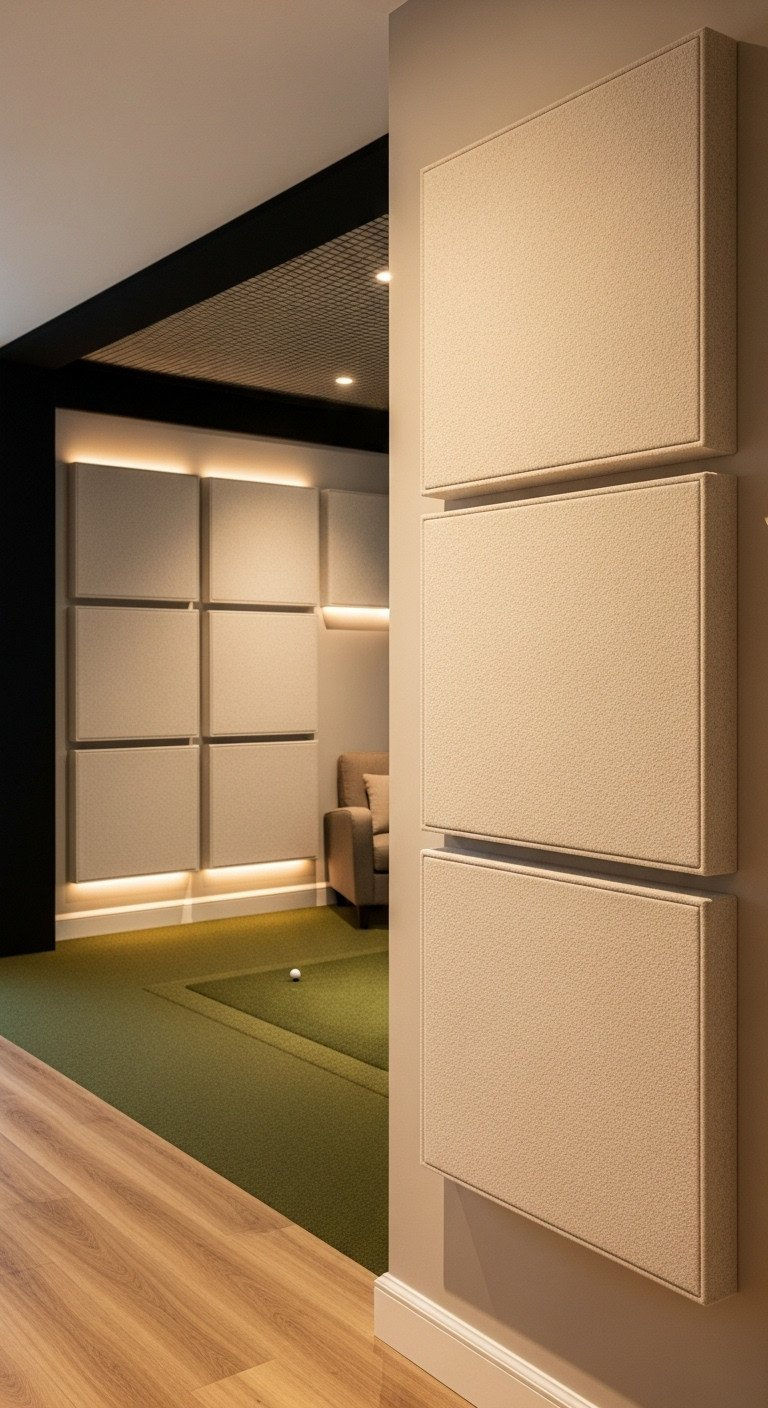

8. Optimizing Acoustics and Sound Dampening

Quiet down the thwack! Pin this soundproofing strategy.

The sharp thwack of a golf ball hitting an impact screen can be surprisingly loud, creating acoustic echo within the room and disturbing others in the house. Implementing acoustic treatment solutions is a key finishing touch that improves comfort and usability. Sound dampening materials work by absorbing sound waves, reducing the reverberation that makes a room feel noisy and harsh.

Materials Needed:

• Dedicated Acoustic Wall Panels (Fabric-wrapped rigid foam, not decorative)
• Heavy, Insulated Curtains or Drapes (For covering windows/doors)
• Commercial-Grade Carpet Padding (Under turf/flooring)
• Weatherstripping or Door Seals (For sound containment)

Installation Steps:

1. Identify Noise Sources: The primary noise sources are the impact thwack against the screen and the echo within the room (reverberation).
2. Screen Dampening: Ensure your screen is tensioned correctly, but not overly rigid. Behind the screen, consider hanging heavy blankets or moving blankets 6 inches from the back wall for initial dampening before impact.
3. Install Acoustic Panels: Place dedicated acoustic panels on the side walls at ear height, targeting the first reflection points (the spots where sound waves initially hit the wall and bounce back). This reduces echo and improves speaker clarity.
4. Seal Openings: Install thick door sweeps and weatherstripping around the simulator room door to minimize noise leakage into the rest of the house.
5. Manage HVAC: If your room requires a fan or ventilation, ensure it is installed using soft ducting or a quiet, low-decibel unit to prevent sensor interference from air movement.

Pro-Tip: The high-pitched thwack of the ball hitting the screen is extremely difficult to eliminate entirely. Focus on absorbing reflected sound (echo) with quality acoustic panels and isolating the room with sealed doors/windows.

9. The Aesthetic Finish: Flooring, Lighting, and Seating

Achieve the dream! Pin your lighting and design inspiration!

The final step is transforming your technical setup into a polished, immersive entertainment space. The right aesthetic design—including lighting, flooring, and seating—enhances comfort and visual optimization. The goal is to create an indoor golf man cave that is as enjoyable for spectators as it is for the player.

Materials Needed:

• Dark, Matte Paint (Black or dark gray for walls/ceiling near the screen)
• Recessed LED Lighting (Non-directional, adjustable brightness)
• Quality Turf Flooring or Commercial-Grade Carpet
• Comfortable Seating (For guests/breaks)

Design & Installation Steps:

1. Flooring Installation: Install synthetic turf (if dedicated use) or a durable, dark commercial carpet. Ensure any seams are tight, and the entire floor is level, especially where the hitting mat sits.
2. Control Ambient Light: Paint the walls and ceiling directly around the impact screen (the first 5 feet) with a flat, dark, matte color (like black or dark gray) to eliminate reflection and boost screen contrast.
3. Install Non-Directional Lighting: Use recessed LED lighting with adjustable dimmers. Position the lights to illuminate the hitting mat and seating area, but ensure no direct light fixture is pointed toward the screen or positioned where it could cast glare onto camera-based sensors.
4. Add Comfort: Integrate comfortable, movable seating that can be safely positioned outside the swing path. Add small tables for drinks, remotes, and accessories to complete the “man cave” feel.

Pro-Tip: Avoid glossy finishes on walls or ceilings entirely. Any highly reflective surface near the screen will diminish contrast and potentially interfere with photometric (camera-based) launch monitors.

Key Takeaways: Your Quick Guide to Simulator Feasibility

Critical Element	Minimum Requirement	Safety/Expert Recommendation
Ceiling Height (H)	9 feet	10 feet (for safe driver use by most golfers)
Room Width (W)	10 feet	13-15 feet (for centered hitting and L/R flexibility)
Room Length (L)	12 feet	15 feet (especially for radar-based launch monitors)
Screen Buffer	12 inches	18 inches minimum from screen to wall
Mat Thickness	1 inch	1.5–2 inches (commercial grade for joint health)

People Also Ask About Golf Simulator Room Constraints

How far away should the screen be from the wall?

The distance between your impact screen and the back wall should be a minimum of 12 inches, with 18 inches being ideal. This buffer space is essential to allow the screen material to flex and absorb the ball’s kinetic energy upon impact, which minimizes ball bounce-back and wear on the screen.

Can I safely swing a driver in a 9-foot ceiling simulator?

A 9-foot ceiling is the absolute minimum, but it may not be safe for all golfers, especially those over 5’10” with a steep swing plane. To maximize safety and clearance, users with 9-foot ceilings must either use a shorter driver shaft (43 inches) or consider a recessed hitting mat system that lowers the golfer by 4 to 8 inches.

What is the average total cost for a high-quality residential golf simulator room build?

The average cost for a high-quality residential golf simulator room, including the launch monitor, enclosure, and PC, typically falls between $15,000 and $25,000. This estimate excludes major structural renovation costs (like extensive electrical work or specialized flooring) but includes premium components designed for long-term use and accuracy.

What is the best way to eliminate shadows on the impact screen?

The best way to eliminate golfer shadows is by using a short-throw (ST) or ultra-short-throw (UST) projector mounted directly above the hitting area, as close to the screen as possible. This minimizes the distance between the light source and the screen, preventing the golfer from intercepting the light path during the swing.

Do I need a dedicated PC or will my old laptop work for the simulator software?

You almost certainly need a dedicated gaming PC with a modern, high-performance graphics card (NVIDIA GTX 3060/4070 equivalent or better). Simulator software is graphically intensive and requires high processing power to maintain a stable, high frame rate (60+ FPS), which is necessary for a smooth and immersive experience without visual latency.

Final Thoughts

The journey to building your ultimate golf simulator room, whether in a dedicated basement or a dual-purpose garage, requires meticulous planning and adherence to safety-first principles. By mastering the golden rules of dimensioning, selecting components compatible with your space, and following a structured build process, you transition from simply having a hitting net to owning a professional-grade training studio. This investment pays dividends in performance and year-round enjoyment.

What is the single biggest design challenge you face in your planned simulator room, and how will these expert dimensions help you overcome it? Share your plans below
